Low Static Horizontal-ducted Indoor Unit

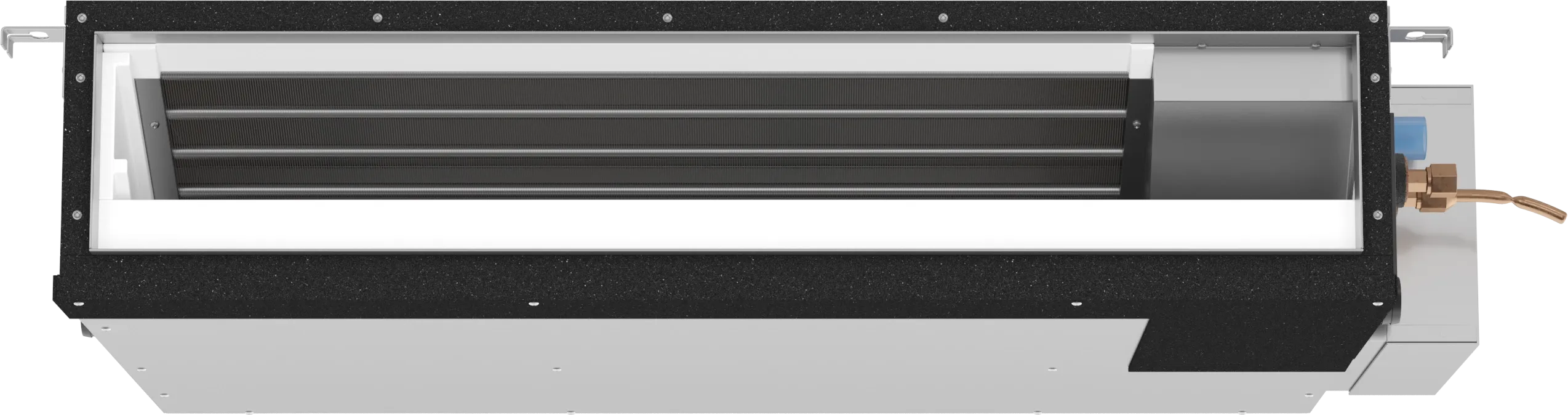

SEZ low static horizontal-ducted indoor unit

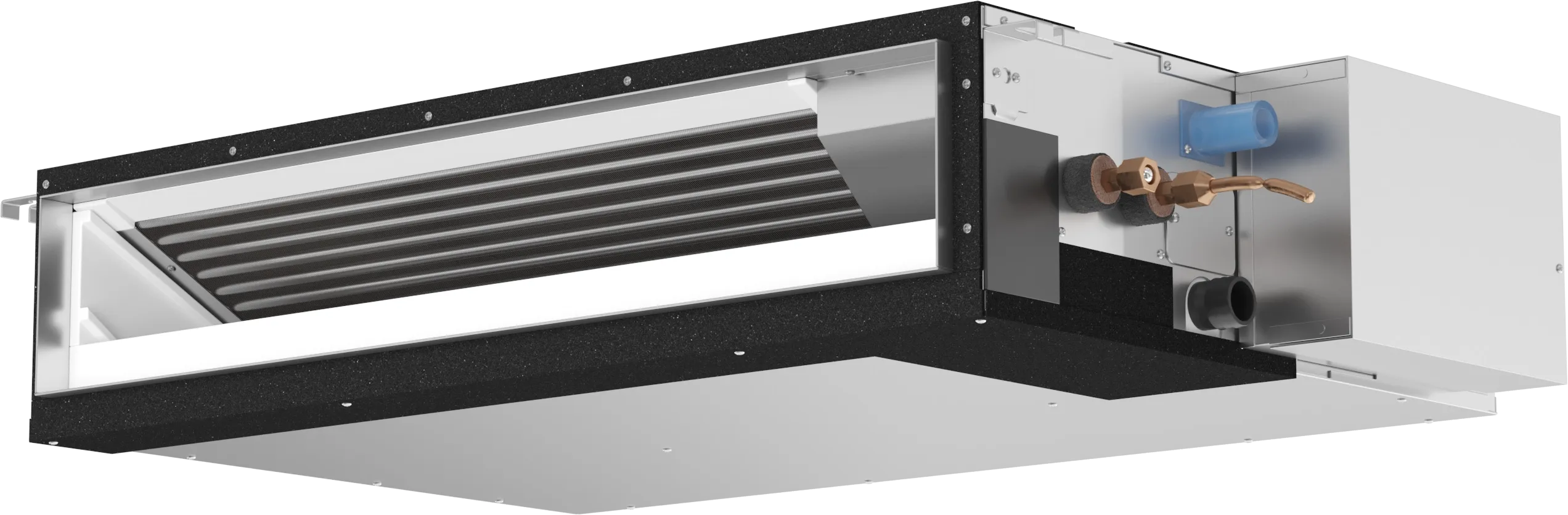

SEZ low static horizontal-ducted indoor unit right view

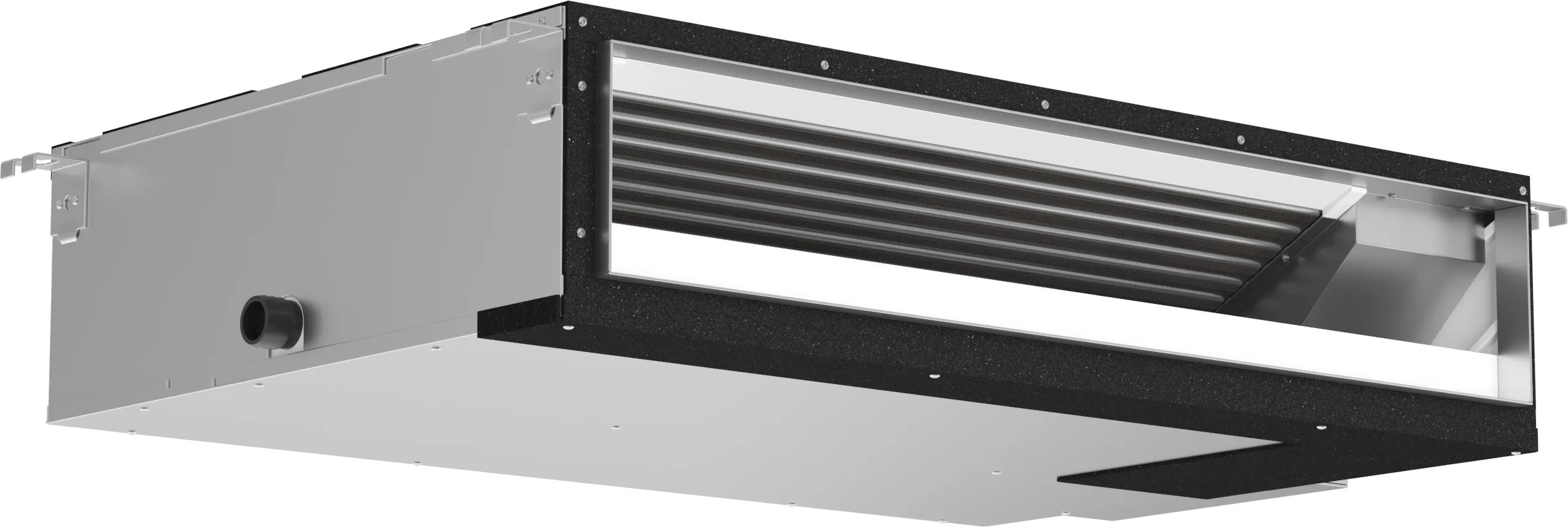

SEZ low static horizontal-ducted indoor unit left view
energy-star-logo icon in default color

SEZ

P-Series Light Commercial Indoor model

Available as a single-zone or multi-zone unit, these low static units are designed to cool and heat one or two rooms through a short duct run. The SEZ series may be mounted in the attic, hidden in the ceiling or beneath the floor, or concealed behind a bulkhead.

No incentives found in ,

Features

undefined icon in default color
ENERGY STAR

A government-backed symbol that certifies products, buildings, and practices as energy efficient, making it easier to choose products that use less energy without sacrificing quality or comfort.

Dimensions

9,000 BTU/H capacity:

• 31 1⁄8" wide

• 7" high

• 27 9⁄16" deep

12,000 - 15,000 BTU/H capacity:

• 39" wide

• 7" high

• 27 9⁄16" deep

18,000 BTU/H capacity:

• 46 7⁄8" wide

• 7" high

• 27 9⁄16" deep

Specifications

Capacity range: 9,000 to 18,000 BTU/H

Sound level: As low as 30

dB(A)

Warranty: 12-year limited warranty*

ENERGY STAR: Yes

*Must be installed by a Diamond Contractor for Low Static Horizontal-ducted Indoor Unit to qualify for 12-year warranty. Learn more

SEZ Technical Information

Select an individual SEZ unit below to view its compatibility with other products, and links to submittals and other data.

Compatible outdoor units
  • SUZ-KA09NA2.MX 9,000 BTU/H, 0.75-Ton Universal Heat Pump -
  • SUZ-KA09NAHZ.TH 9,000 BTU/H, 0.75-Ton Universal Hyper-heating Heat Pump -
Compatible outdoor units
  • SUZ-KA12NA2.MX 12,000 BTU/H, 1-Ton Universal Heat Pump -
  • SUZ-KA12NAHZ.TH 12,000 BTU/H, 1-Ton Universal Hyper-heating Heat Pump -
Compatible outdoor units
  • SUZ-KA15NA2.MX 15,000 BTU/H, 1.25-Ton Universal Heat Pump -
  • SUZ-KA15NAHZ.TH 15,000 BTU/H, 1.25-Ton Universal Hyper-heating Heat Pump -
Compatible outdoor units
  • SUZ-KA18NA2.TH 18,000 BTU/H, 1.5-Ton Universal Heat Pump -
  • SUZ-KA18NAHZ.TH 18,000 BTU/H, 1.5-Ton Universal Hyper-heating Heat Pump -

Compatible controls

These controls can be used with Low Static Horizontal-ducted Indoor Unit systems

kumo touch RedLINK Wireless Controller & Receiver kit

kumo touch™ RedLINK™ Wireless Controller & Receiver kit

PAC-SDW01RC-1 Simple Ducted Wired Remote Controller

Simple Ductless Wired Remote Controller

Simple MA Remote Controller

Simple MA Remote Controller
