Diamond System Builder™

This PC-based tool makes it easy to design residential and commercial systems with its equipment selection and system layout software. The program provides start-to-finish functionality from design and specification to installation and start-up documentation.

Mitsubishi Electric engineers huddling over laptop

Features to assist from start to finish

copy-2.svg icon

Start-to-finish

Provides functionality to support your system from design and specification through installation and start-up.

cloud.svg icon

Cloud-based workspace

Seamlessly save and share files across the cloud for effortless collaboration with team members

warning-circle.svg icon

Built in error indicator

Built-in error indicators and safeguards ensures your designs don't exceed system limitations, line lengths, connected capacities, and control schemes are all within system requirements.

download-tray.svg icon

Generate schematics and summary sheet

Automatically generate AutoCAD schematics with wiring and piping diagrams to streamline installation. Output a summary spreadsheet of your system to simplify project quoting and equipment lists.

save-space.svg icon

Project specific parameters

Input specific parameters and the software will determine if adjusted heating and capacity needs meet the required loads.

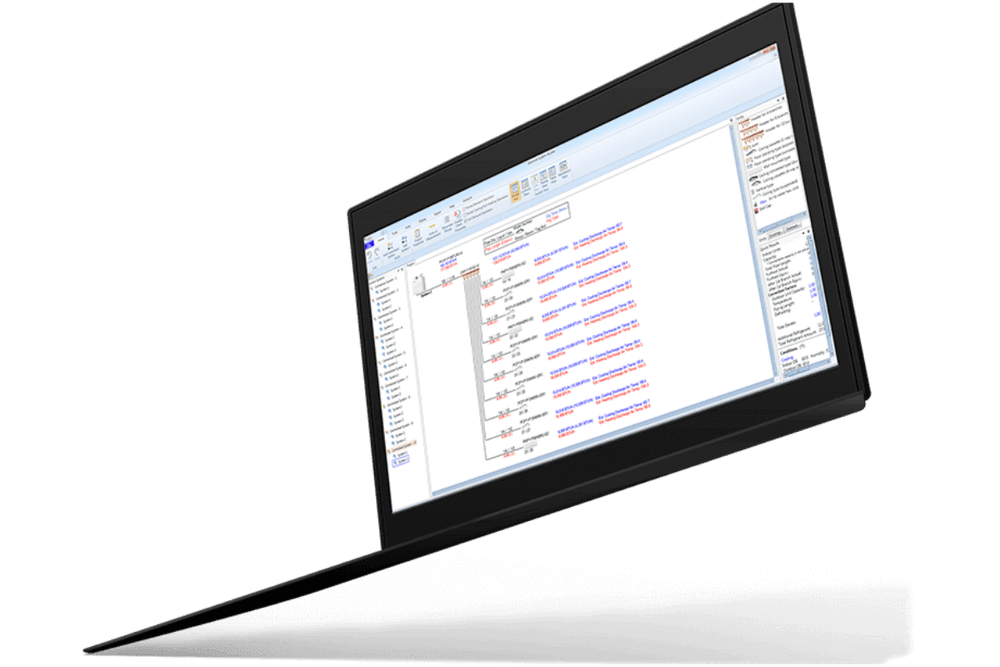

right angle of black laptop showcasing the user experience of the diamond system builder

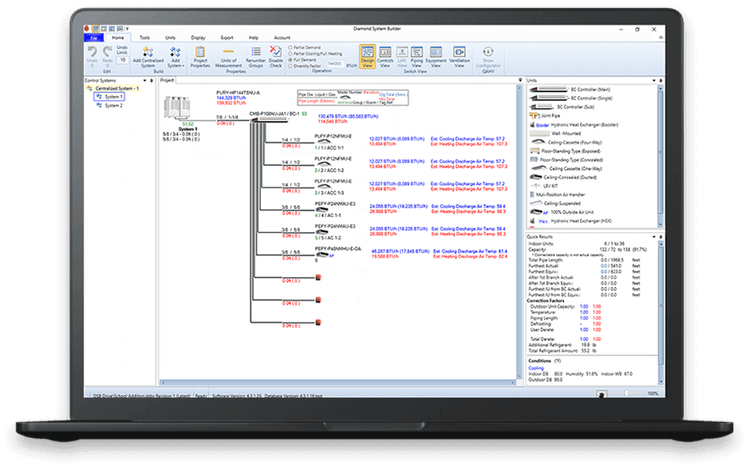

front angle of black laptop showcasing the user experience of the diamond system
