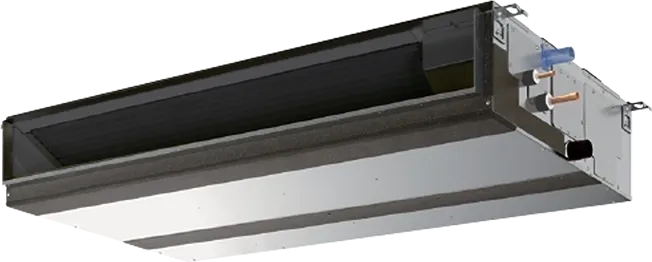

Medium Static Ceiling-concealed Indoor Unit
PEFY-P-NMAU
City Multi Commercial Indoor model
The PEFY-NMAU Mid Static Ceiling-concealed Ducted Indoor Unit provides up to 0.6" external static pressure (adjustable). The integrated condensate lift mechanism (27-9/16" lift) allows for long piping and application versatility. Optional filter boxes with 2"-thick pleated MERV 13 filters are available. These indoor units are an excellent choice for office buildings, schools, hotels, assisted-living facilities, and other applications where ceiling space is obtainable.Capacities:R2-Series:6,000 to 54,000 BTU/HY-Series:6,000 to 54,000 BTU/HS-Series:6,000 to 54,000 BTU/HSound: as low as 26 dB(A)
Dimensions
6,000 - 12,000 BTU/H capacity:
• 27 9⁄16" wide
• 9" high
• 28 7⁄8" deep
15,000 BTU/H capacity:
• 35 7⁄16" wide
• 9" high
• 28 7⁄8" deep
18,000 BTU/H capacity:
• 35 7⁄16" wide
• 9 7⁄8" high
• 28 7⁄8" deep
18,000 - 27,000 BTU/H capacity:
• 43 5⁄16" wide
• 9" high
• 28 7⁄8" deep
30,000 BTU/H capacity:
• 43 5⁄16" wide
• 9 7⁄8" high
• 28 7⁄8" deep
30,000 - 48,000 BTU/H capacity:
• 55 1⁄8" wide
• 9" high
• 28 7⁄8" deep
54,000 BTU/H capacity:
• 63" wide
• 9" high
• 28 7⁄8" deep
Specifications
Warranty: 12-year limited warranty*
*Must be installed by a Diamond Contractor for Medium Static Ceiling-concealed Indoor Unit to qualify for 12-year warranty. Learn more
PEFY-P-NMAU Technical Information
Select an individual PEFY-P-NMAU unit below to view its compatibility with other products, and links to submittals and other data.
Compatible controls
These controls can be used with Medium Static Ceiling-concealed Indoor Unit systems
